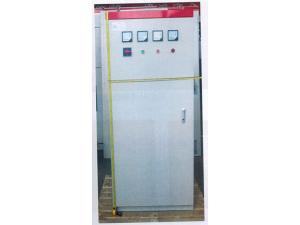

PL Power Distribution Board

PL Power Distribution Board
The PL power distribution board is ideal for indoor applications. It is mainly applied in a variety of residential buildings, high-rise buildings, enterprises, stores and schools, as well as mobile electrical equipment and electrical energy measurement. This product can realize power conversion, distribution, control, measurement, as well as the overload, short circuit and leakage protection.

Features of the PL power distribution board
1. This product works easily and consists of various switch elements, housing, door, protective earth bar and insulated conductor, etc.
2. The housing of the indoor enclosed power distribution board is made of cold-rolled steel plate. It is hard, lightweight, and its thickness ranges from 1.2mm to 2.0mm.
3. Multiple protective devices are provided for leakage, electric shock, short circuit and overload protection.
4. The top, bottom, left, right and back of the cabinet can be punched with holes for ease of wiring.
5. The multi-strand soft branded line is connected with built-in PE point. Continuous circuit protection is available.

Main Parameters of the PL Power Distribution Board
Name Unit Parameter
Rated working voltage Ue V(AC) 380
Rated insulation voltage Ui V(AC) 690
Auxiliary circuit insulation voltage Ui V(AC) 500
Rated working frequency f Hz 50
Rated impulse withstand voltage Uimp kV 8
Main busbar (horizontal busbar ) Rated current In A 400~10
Rated short-time withstand current Icw kA 10
Rated peak withstand current Ipk kA 17
Level of protection for housing IP IP30
Operating mode Manual/Electric
